Luzzati Plot
The
value as a function of resolution and intensity can
be obtained by issuing the
PRINt R statement after structure factors have been computed.
The output of the PRINt R statement can be used to make
a plot of the
value distribution, the so-called
Luzzati plot (Luzzati, 1952). In the following
example, the X-PLOR script file creates a file “luzzati.list":
luzzati.inp
The following Mathematica script can be used to make the
Luzzati plot shown in Fig. 13.1:
luzzati.math

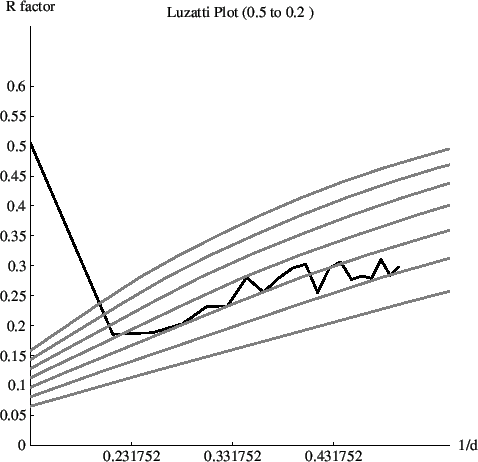

Figure 13.1:
Luzzati plot.
